Specify with confidence
AFS fencing is drawn, engineered and documented to specify cleanly. Sections, finishes, fixings and compliance, ready for your drawings and schedules. We supply only, so the contractor who builds it is served here too.
- Systems
- Made to order architectural fencing, mostly aluminium. Construction stated per style
- Material
- Structural Grade architectural aluminium, internal stiffener, 316 stainless fixings
- Sections
- Stated per style. See the range for each style's sections and spacings
- Heights
- Made to order. 1250 mm standard on pool barriers, 1200 to 1800 mm front, or custom
- Spacing
- Specified per project, never exceeding 100 mm on a pool barrier
- Compliance
- AS 1926.1 (pool barriers), AS/NZS 1170.2 (wind), AAMA 2604 (powder coat)
- Structural
- Project specific wind load certification, arranged per project
- Warranty
- 10 years, structure and powder-coat
Each style carries its own sections, spacings, heights and construction, and each style page states whether it is screw together or welded. Sizes are made to order, so a style sets the look and the project sets the rest. Several of our styles are original AFS designs and patent pending.
Shop drawings with every order

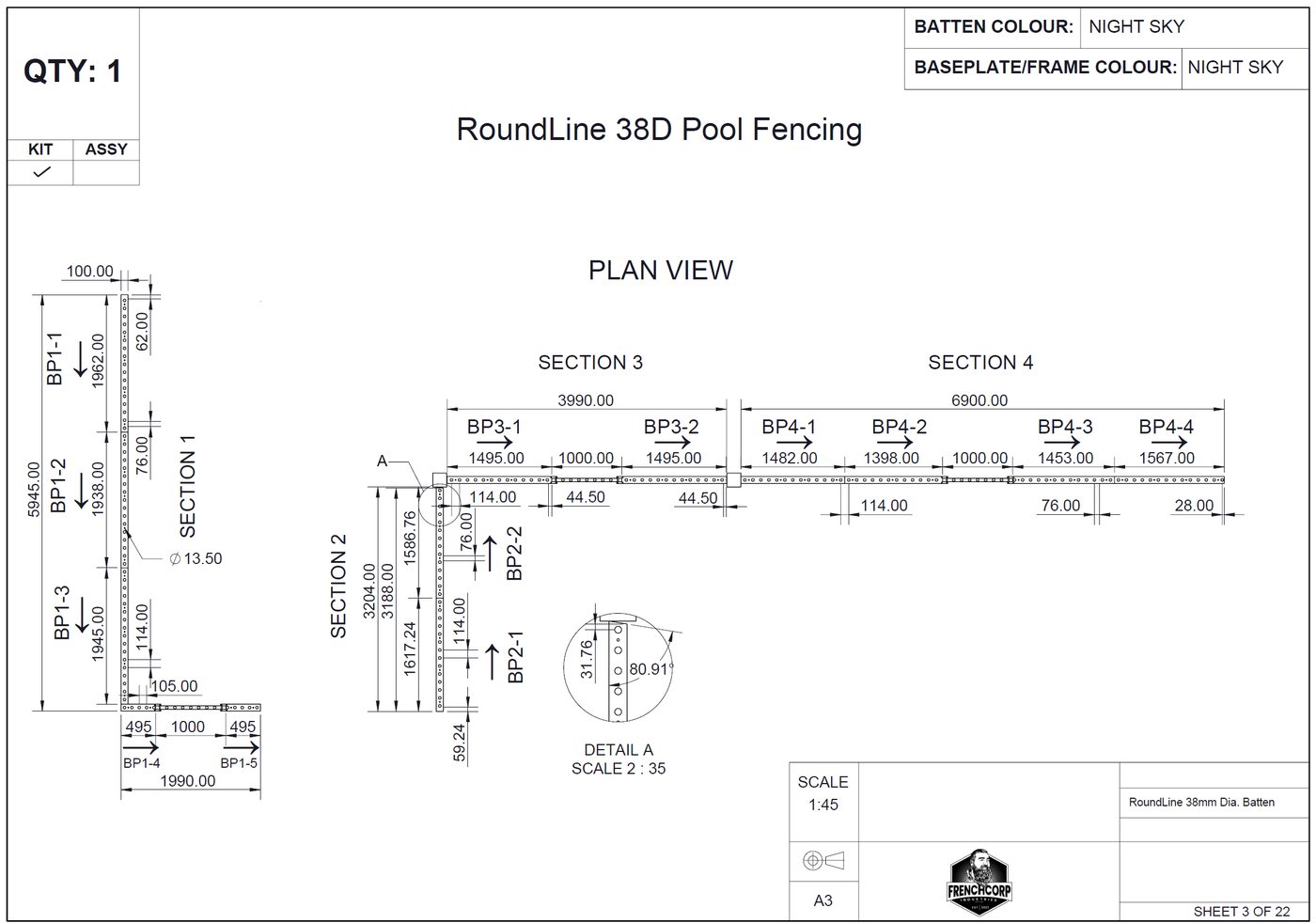

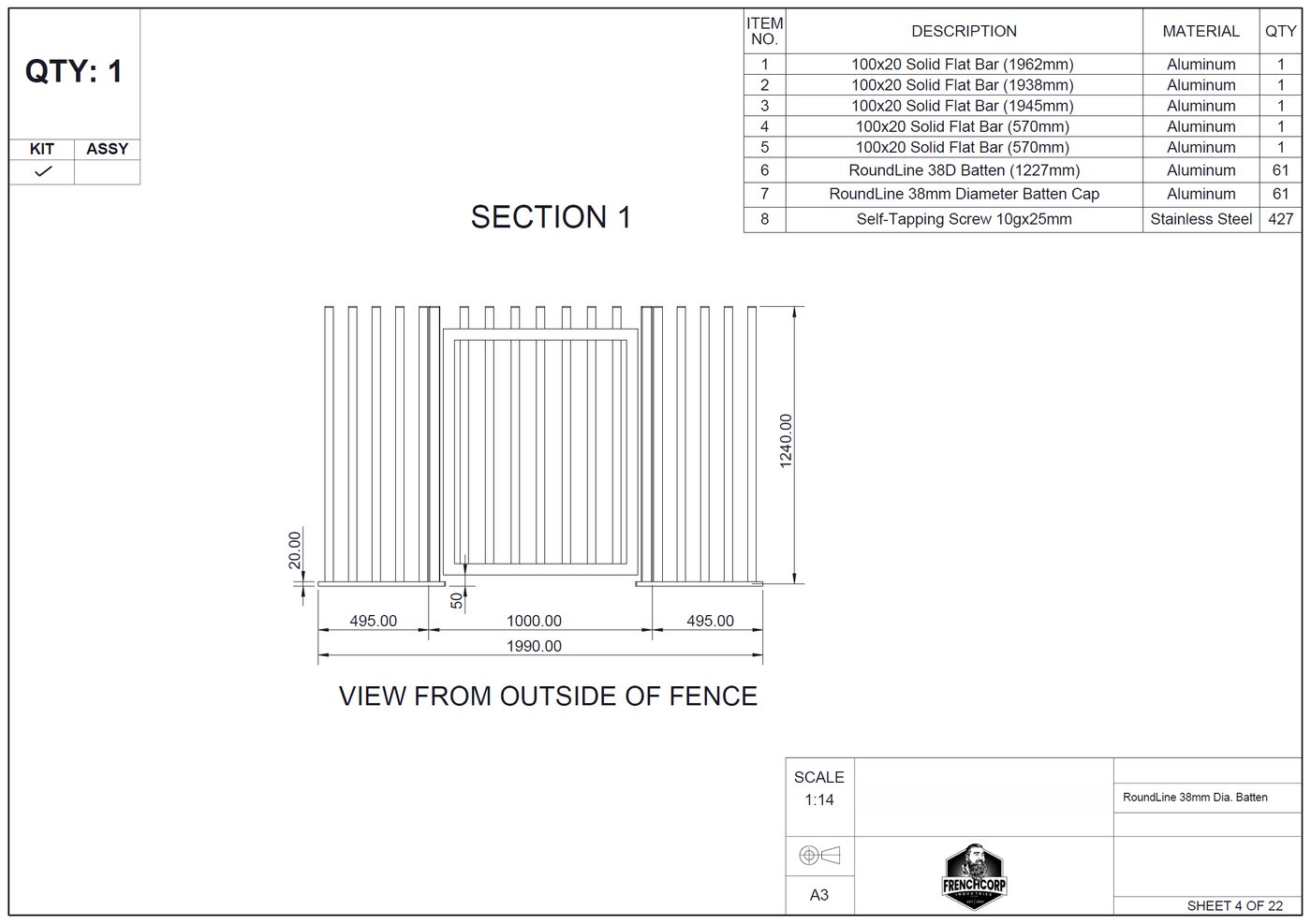

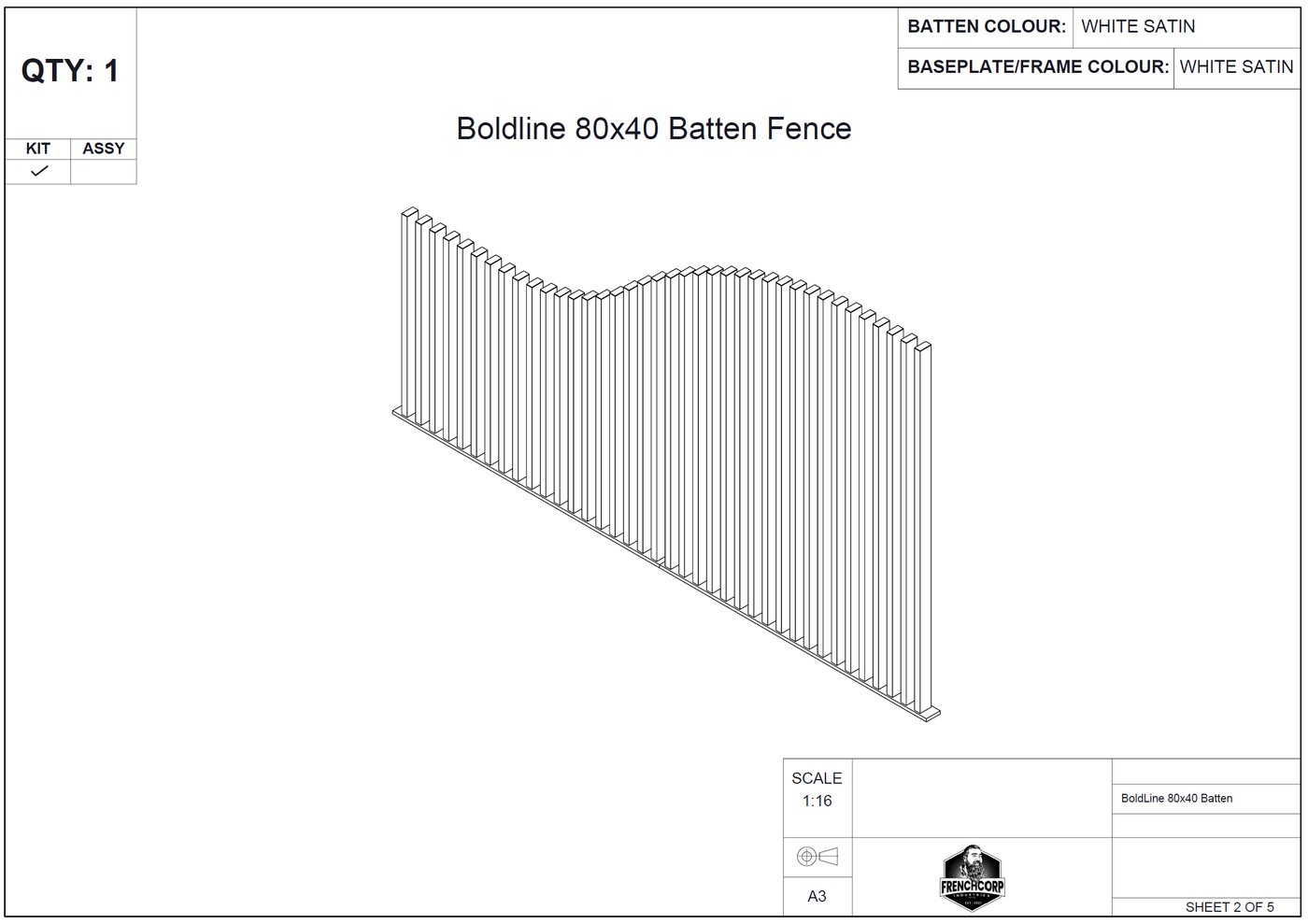

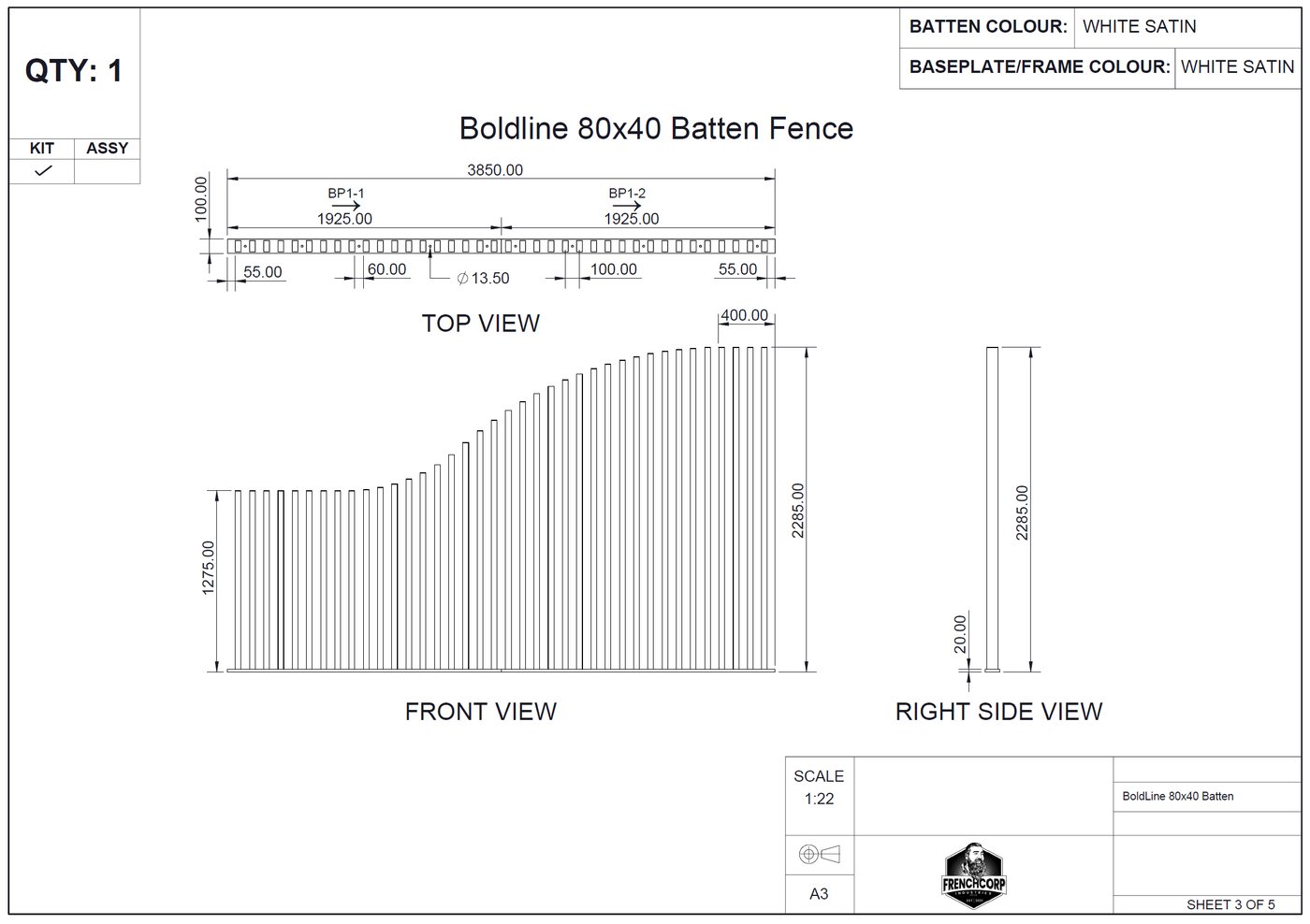

Project specific shop drawings before manufacturing, plus 3D, plan and section details. The details below are for the Batten style; each style has its own.
Can you provide engineering for our wind region?
Yes. Project specific structural certification including wind load calculations, footing design and adequacy statements.
Do you supply CAD and BIM?
Comprehensive DWG and DXF CAD files are available now. Every order also ships with project specific shop drawings before manufacturing.
What are the lead times?
You will have a quote back within 24 hours, with a real dispatch date on it rather than a hopeful one. From approval, a made to order run is around 6 weeks to delivery.
Is there a minimum order for custom colours?
No minimum within the standard Dulux and Interpon range. For a truly custom match (a specific RAL or Pantone reference) we require a minimum of 20 lineal metres. Free powder coat samples are available.
Can you provide samples?
We provide 300 mm profile samples in your specified colour at no charge, plus full sample kits and full size sample panels. Allow 5 to 7 business days Australia wide.
Someone else builds what you specify
AFS supplies only. Every fence we make is assembled and installed by a builder, fencing contractor or landscaper, so we design for that and we deliver everything the run needs on one delivery. If you are handing this to a contractor, send them the trade page.
